Project Report For Electric Switch


Project Report For Electric Switch  is as follows.

There are tens of thousands of switch uses in the household and in industry. Every day, hundreds of electrical switches perform services that you take for granted. Some switches are activated by the touch of a finger, while many others function automatically. Switches are used in the house to regulate the stove, turn on the refrigerator light, switch on and control radios and TVs, hair dryers, dishwashers, trash disposals, washers and dryers, and to control heating and air conditioning.

Switches are used in a range of applications in industry. They can be found in the workplace on computers, copy machines, electronic typewriters, and other office equipment. Thousands of switches are used in a factory or shop, and they are present on practically every piece of machinery.

Switches are intended to operate in a variety of settings, ranging from very high pressure, such as in a submarine, to extreme low pressure, such as in a spaceship. High or low temperature, fast temperature variations, humidity, liquid splashing or immersion, ice, corrosion, sand or dust, fungus, shock or vibration, and an explosive atmosphere are all factors to consider.

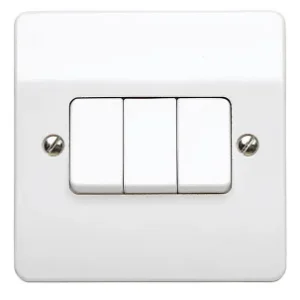

Project Report For Electric Switch

Types Of Electric Switch

SPST Switch in Action :- The Single Pole Single Through (SPST) switch is a simple on/off switch that simply connects or disconnects two terminals. The SPST switch controls the power supply to a circuit. The figure below depicts a basic SPST switch. These switches are also known as toggle switches. This switch contains two contacts, one of which is input and the other is output. It controls one wire (pole) and creates one connection (throw) according to the usual light switch schematic. When the switch is closed or turned on, current travels through the terminals and the bulb in the circuit lights up. There is no current flow in the circuit while the switch is open or closed.

SPDT Switch Action :- A single pole double throw (SPDT) switch has three terminals, one for input and two for output. It links one of two terminals to a common terminal. To utilise the SPDT switch as an SPST switch, simply use the COM terminal instead of the other terminals. For example, we may use COM and A or COM and B. The circuit clearly shows what occurs when the SPDT switch is flipped back and forth. These switches are used in a three-way circuit to turn on and off a light from two different locations, such as the top and bottom of a stairwell.

DPDT Switch in Action :- DPDT stands for double pole double throw and is similar to two SPDT switches. It connects two distinct circuits, each with two inputs and two outputs. The number of ways each of the two connections can be routed is determined by the location of the switch. When in ON-ON or ON-OFF-ON mode, it acts as two distinct SPDT switches controlled.

Project Report Sample On

Electric Switch

Get Completely Custom Bankable Project Report

Market Potential for Electric Switch

The size of the electric switch market exceeded USD 13 billion in 2021, and it is anticipated to grow at a CAGR of about 6% between 2022 and 2030.

An electromechanical switch is one that opens and closes an electric circuit. As a result, the flow of electric current alternates between stopping and starting. Switches can feature several sets of contacts operated by the same actuator or knob, as well as contacts that function continuously, sequentially, or alternately. Electrical switches are binary systems; they either turn on or off the whole power supply.

Electrical switches are used in a wide range of businesses, including commercial, residential, and industrial settings, where safety and security are critical for the efficient working of electrical connections. They are designed for advanced industrial applications and are constructed to withstand mechanically demanding environments or temperature variations.

A switch in an electrical system provides security and versatility, allowing networks to be customised without losing quality or performance. Switches have shown that youngsters may use them securely in the house. Because of growing worries about exposed wire terminals and careless handling of electronic equipment, electrical switches are now necessary in the industrial sector. These causes are causing an increase in the demand for electrical switches in India.
