Project Report for Plumb Bob Manufacturing
Invisible infrastructure, hot melt adhesives glue bookbinding spines, bind shoe bottoms to uppers, secure labels to bottles, and keep cardboard boxes closed. They are used by every packaging factory in India. Sharda Associates creates CA-certified hot melt adhesive manufacturing project reports for PMEGP and MSME bank loans, delivering more than 45,500 project reports. beginning at ₹2,999.
Get free Sample
What Are Plumb Bob Manufacturing

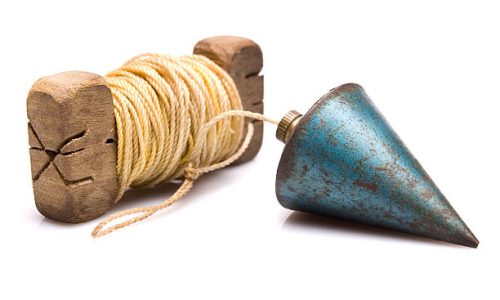

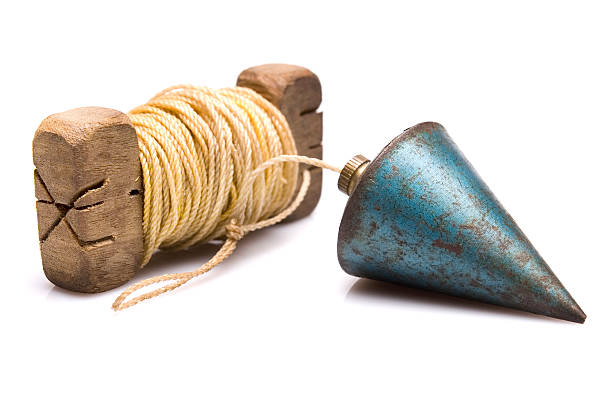

A plumb bob, also known as a plummet or plumb weight, is a precision weight strung from a rope or cord that, under gravity, points to the exact center of the Earth, forming a correct vertical reference line. In building and surveying, this simple principle is used to evaluate whether a wall is actually vertical, to transfer points from floor to ceiling, to align column formwork, and to validate the vertical alignment of door and window frame.
The plumb bob is one of the oldest measuring devices still in constant use today. Despite the advent of laser levels and digital plumb tools, the classic plumb bob is still popular on construction sites due to its simplicity, low maintenance, no battery demand, and total resistance to electronic interference. A ₹50 plumb bob in a bricklayer’s pocket performs the same function as a ₹5,000 laser plumb tool and is more durable in dusty, wet, and tough building environments.
Types of Plumb Bobs a Manufacturing Unit Can Produce
- Standard Brass Plumb Bob – A traditional conical brass plumb bob used for construction, masonry, and alignment work; this is the most popular product segment.
- Stainless Steel Plumb Bob – SS 304 type is corrosion-resistant and appropriate for coastal, marine, and industrial applications.
- Heavy Plumb Bob – Heavy-duty variants ideal for tall structures, scaffolding, and windy construction environments.
- Precision Surveying Plumb Bob – A high-precision plumb bob with a fine tip for surveying, theodolite centering, and engineering use.
- Chalk Line Plumb Bob: is a dual-purpose instrument that combines a chalk line reel with a plumb bob for marking and alignment.
- Plumb Bob Set – Multi-weight plumb bob kits are available from hardware stores, tool dealers, and internet retail channels.
Market Demand — For Plumb Bob Manufacturing
Plumb bobs are a typical construction consumable that are frequently lost, broken, or worn out on job sites, resulting in a continual demand for replacements. Every hardware store that serves construction workers carries plumb bobs. Every construction tool dealer carries them. The product has no seasonality because construction occurs year-round in India.
India’s construction business builds 60-80 lakh housing units each year, with each building site employing several plumb bobs during the construction process. India’s infrastructure expansion (roads, trains, bridges, and industrial units) generates more volume. The product’s inexpensive price point (₹50-500 retail) encourages impulse purchases with other equipment, resulting in broad distribution reach.
Exports to the Middle East, Africa, and Southeast Asian building industries are a stable revenue stream for Indian hand tool producers. Indian-made plumb bobs with competitive cost serve these markets well.
Manufacturing Process
Plumb bob production is a precision CNC turning operation—one of the most accessible manufacturing procedures for a small MSME using a lathe.
Material preparation: Cut brass rod (60/40 free-machining brass, the norm for turned precision components) or stainless steel rod to blank length with a power hacksaw.
CNC or conventional turning: The blank is placed in a lathe chuck and turned to the plumb bob profile, which includes the conical body, neck, and string attachment cap. For brass, a conventional lathe is acceptable for modest volumes, while a CNC lathe provides consistency and better throughput.
Tip precision: The tip point is honed to a fine, sharp point using a bench grinder or tool grinder. The tip must be perfectly on the axis of the bob; off-center tips cause the bob to hang at an angle rather than vertically. This is a vital quality operation.
Drilling and threading: Drill or tap a string hole or threaded stud in the exact top center of the bob.
Polishing: Using a polishing wheel, brass bobs are polished to a brilliant sheen. SS bobs polished to mirror or satin.
Quality control: Each bob is hung from a string and checked for proper vertical hang – the tip must be directly below the string attachment. Any bob that hangs off the axis is rejected.
Project Cost for Plumb Bob Manufacturing Unit
Cost Component | Small Unit (₹) | Medium Unit (₹) |
CNC lathe or precision lathe | 2,00,000–5,00,000 | 6,00,000–12,00,000 |
Tool grinder (tip sharpening) | 50,000–1,00,000 | 1,00,000–2,00,000 |
Polishing machine | 40,000–80,000 | 80,000–1,50,000 |
Brass rod / SS rod raw material (3 months) | 80,000–1,50,000 | 1,50,000–3,00,000 |
Working capital + quality fixtures | 80,000–1,50,000 | 1,50,000–3,00,000 |
Total Project Cost | ₹4.50–9.80 lakh | ₹11.80–22.50 lakh |
Mudra Kishore/Tarun: Covers small plumb bob unit. PMEGP: Up to ₹50 lakh → 15–35% capital subsidy.
Why Choose Sharda Associates
- More than 45,500 project reports covering PMEGP applications, construction tools, precision turned components, and brass machining were produced.
- Correct documentation of tip concentricity criteria ensures that crucial quality checks and alignment standards are appropriately reflected in the manufacturing process.
- Appropriate free-machining brass grades are supplied for accurate costing and high-quality production when brass grade selection is properly specified.
- Plumb bobs, brass fittings, connectors, hardware components, and other turned goods projected from the same setup were evaluated as opportunities for product diversification.
- Mudra Loan and PMEGP eligibility are assessed; depending on project size and investment needs, a financing alternative is suggested.
- Included are bank-ready financial projections, CMA data, DSCR, profitability analysis, machinery planning, and accurate raw material costs.
- Prior to delivery, DSCR was confirmed to be above 1.25 to increase the likelihood of bank loan acceptance.
- Starting at ₹2,999 · 24–48 hours
📞 +91 89899 77769 | All India service
Frequently Asked Questions
A plumb bob is a precision weight suspended from a string that hangs true vertical under gravity — providing a plumb (vertical) reference line. Used in construction to check wall verticality, transfer vertical reference points between floors, align formwork, and verify door and window frame plumb. Used by bricklayers, carpenters, tilers, and surveyors daily on every building site.
Yes. Precision tools and construction instruments manufacturing qualifies for PMEGP 15–35% capital subsidy on projects up to ₹50 lakh. Small plumb bob units (₹4.5–6 lakh) can also access Mudra Tarun for faster processing.
Brass (60/40 free-machining grade CZ121) — the standard material. Easy to machine, polishes well, good weight density, and naturally corrosion-resistant. Stainless steel (SS 304) for premium and corrosive environment versions. Lead (for very heavy bobs in some markets) — note: lead use requires safety precautions.
Tip concentricity — the tip point must be exactly on the axis of symmetry of the bob body. If the tip is off-centre even by 0.5mm, the bob will hang at a slight angle rather than true vertical — making it useless for accurate plumb measurement. Every finished bob must be tested by hanging from a string and visually checking for true vertical before packing.
Construction hardware dealers (highest volume — retail to bricklayers and carpenters), surveying instrument dealers, construction tool importers and distributors, e-commerce platforms (Amazon, Flipkart), export buyers in Middle East, Africa, and Southeast Asia, and government/institutional procurement through GeM portal.
Small brass plumb bob (100g): ₹35–70 wholesale. Standard brass bob (200g): ₹65–120. Heavy bob (500g): ₹120–220. SS plumb bob (200g): ₹120–250. Precision surveying bob: ₹300–700. Chalk line + plumb bob combination: ₹150–350.
Yes — strongly recommended. The same CNC lathe and brass rod inventory that makes plumb bobs also makes brass cable glands, brass nuts and bolts, brass fittings for plumbing, door hardware, and general precision turned components. Diversifying into these adjacent products significantly increases machine utilisation and revenue per capital rupee invested.
A plumb bob uses gravity directly — the hanging weight always points to true vertical. It is more accurate over longer distances (checking a 3-floor wall vertical alignment) and works in conditions where a spirit level is impractical (checking the plumb of a deep foundation trench). A spirit level is faster for shorter measurements (door frame plumb). Professional builders use both.
Indian hand tool manufacturers export plumb bobs to the Middle East (UAE, Saudi Arabia — large Indian construction workforce), Africa (growing construction market), and Southeast Asia. Indian brass plumb bobs at ₹35–150 wholesale are competitive against Chinese products. Export through hand tool export houses in Delhi, Mumbai, and Rajkot is the standard route for MSME manufacturers.
